High Precision Inline PCB Separating Router For Low Stress Circuit Board Depaneling

The Inline PCB Separating Router is a fully automatic CNC depaneling machine designed for high-volume SMT assembly lines. Unlike guillotine separators that only work on straight V-cut lines, this router system uses a high-speed rotating spindle to mill out complex PCB shapes, cut large motherboards, and separate single/double panel PCBs with heavy components or odd shapes.

Whether you're manufacturing automotive electronics, medical devices, tablets, or communication modules, this inline system delivers consistent, stress-free depaneling without damaging nearby components.

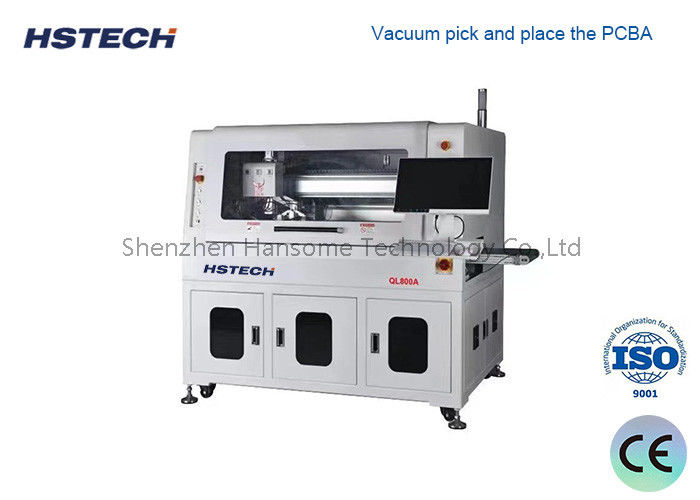

• Vacuum pick and place the PCBA.
• Bottom cutting.
• Double platform cutting.
• With broken knife detection.
• Connect the automatic production line.
• SPC statistics function and match the ERP system.
• Can be equipped with automatic tool change, explosion-proof function of vacuum cleaner and air volume monitoring function.

Machine size

Bottom size routing and dust collector

Excellent CCD system with imaging camera, moritex lens and measurement - level light source, to support machine calibration,compensation and positioning, with great stability and anti-disturbance capacity.

Omnipotence vacuum suction chuck for picking, placing , unloading, and production.

Composite unloading system, used the ESD anti-static belt to transport the separated product on the top side, and the waster is transported on the bottom side, save much space by this method.

1. Consumer Electronics: Smartphone motherboards, tablet PCBs, smartwatch modules

2. LED Industry: LED aluminum boards, rigid LED strip arrays

3. Automotive Electronics: Car entertainment systems, sensor boards, control units

4. Medical Devices: ECG monitors, patient monitoring PCBs (requires burr-free, dust-free cutting)

5. Communication: 5G modules, base station PCBs, network routers

A: A Guillotine separator is best for simple straight V-cut lines. An Inline Router is ideal for complex shapes, curves, and boards without V-cuts. It also produces virtually zero stress, making it safer for sensitive components.

A: Yes. With our specialized fixture and vacuum suction system, the router can securely hold and cut thin, flexible, or uneven PCBs without deformation.

A: The machine is equipped with a high-performance vacuum dust collector that captures debris instantly at the cutting point, ensuring a clean working environment and protecting the PCB surface.

Ready to automate your depaneling process? Contact our engineering team today with your PCB Gerber files. We will provide a free cycle-time analysis and a competitive quote tailored to your region .
